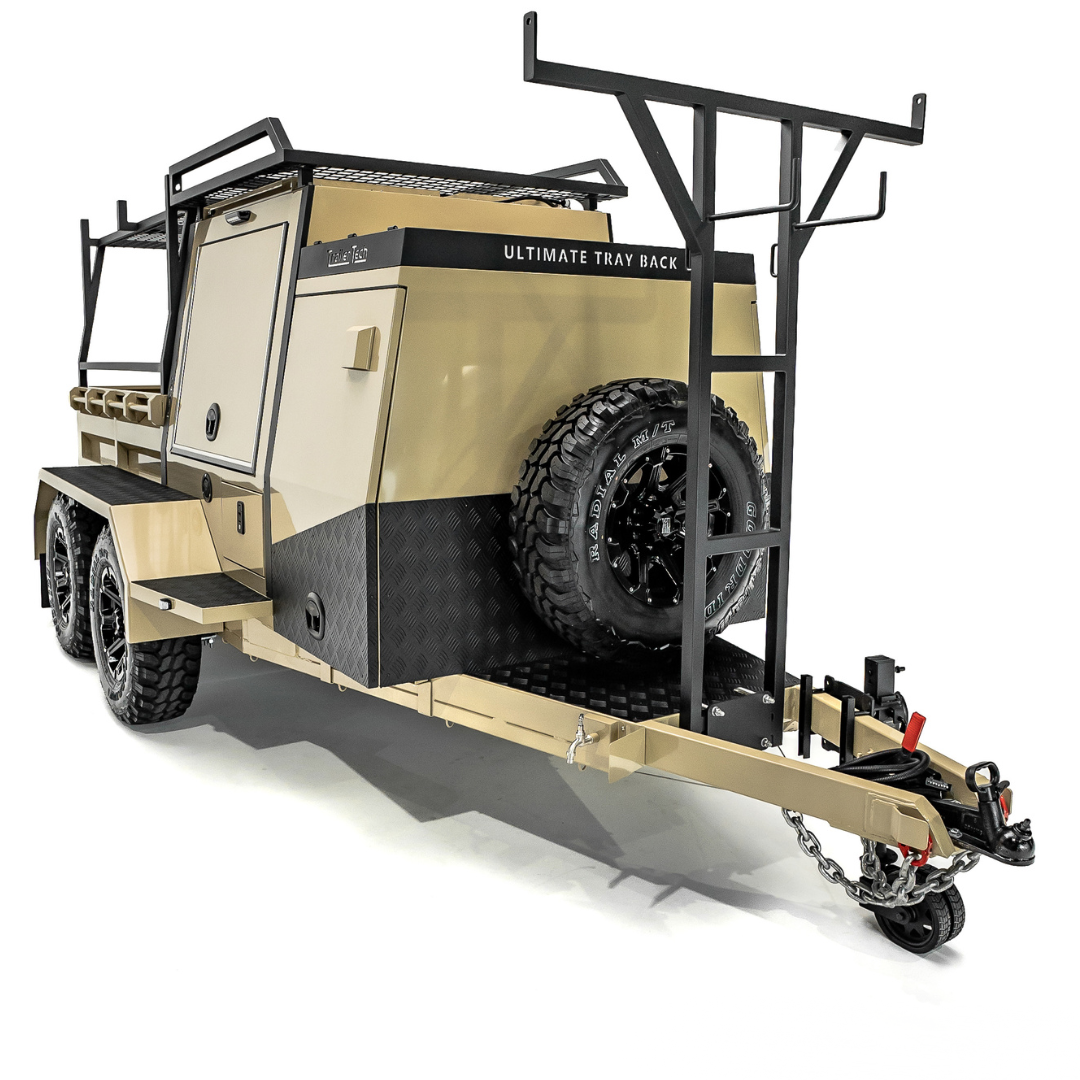

Tray Back Trailer - Tipper

Regular price $30,495.00 inc GST
/
Shipping calculated at checkout.

We have designed the Ultimate Tray Back Trailer with the YOU in mind!

  • Unique tray back with tipping functionality
  • Hot dipped galvanised steel and then powder coated to ensure your trailer is looking fresh and outlasting any trailer you have ever owned
  • Double seals over all doors to keep your tools clean & dry in even the harshest conditions
  • Electrical & solar package included
  • Central locking & alarm system fitted
  • Water tank on a 12v pump
  • A high-pressure tap mounted to the drawbar
  • Toolbox draws built to the toughest standards
  • 1300mm wide CNC cut fully welded roof racks
  • Multiple colours available in gloss or matte finish
  • We guarantee our build with a 5-year structural warranty

We've spent countless hours have gone into designing and engineering the Ultimate Tray Back Trailer to be the most multi-functional trailer on the market.
From your all-in-one tradie trailer to materials tipper trailer, or from a camping trailer to a dirt bike hauler.

Optional Upgrade List

  • Aggregate Trailer Mass (ATM): 3500kg
  • Tare Weight Bare: 1770kg
  • Total Dimensions: 5150mm (L) x 2175mm (W) x 2200mm (H)
  • Tray Dimensions: 1680mm (L) x 1390mm (W) x 380 (Depth)
  • Canopy Dimensions: 1250mm (L) x 1500mm (W) x 1050mm (H)
  • Front Toolbox Dimensions: 700mm (L) x 1500mm (W) x 1100mm (H)
  • Galvanised Steel and Custom RAL Powder Coated.
  • Tyres: 265/75R16 MT
  • Rims: Black alloy XD fitted with Landcruiser 6 bolt hubs
  • Brakes: 12-inch electronic braking all round fitted & manual hand brake
  • Suspension: Individual powder-coated control arms with 2 struts and a coil spring per wheel
  • Tow Ball: 50mm
  • Slimline LED Tail Lights

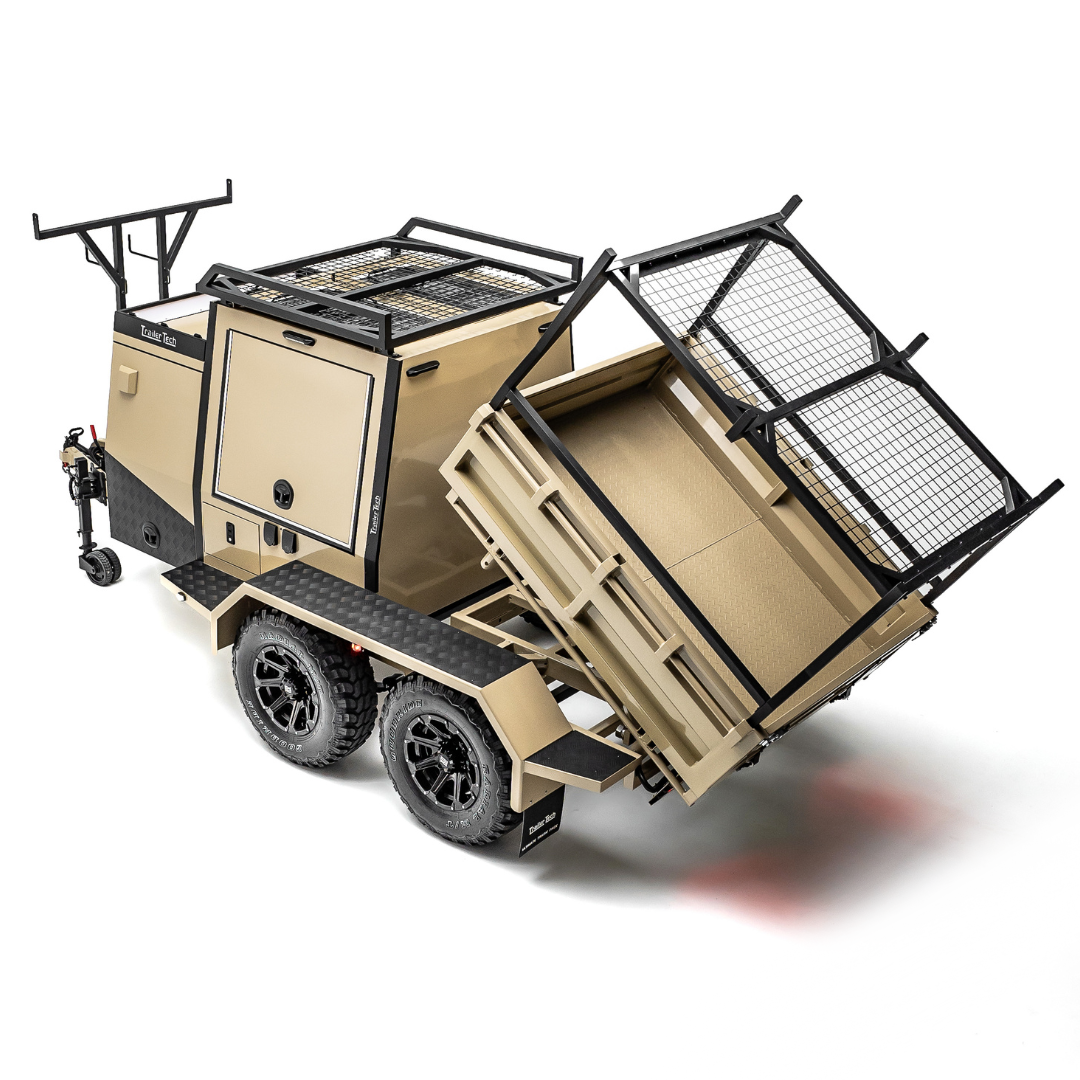

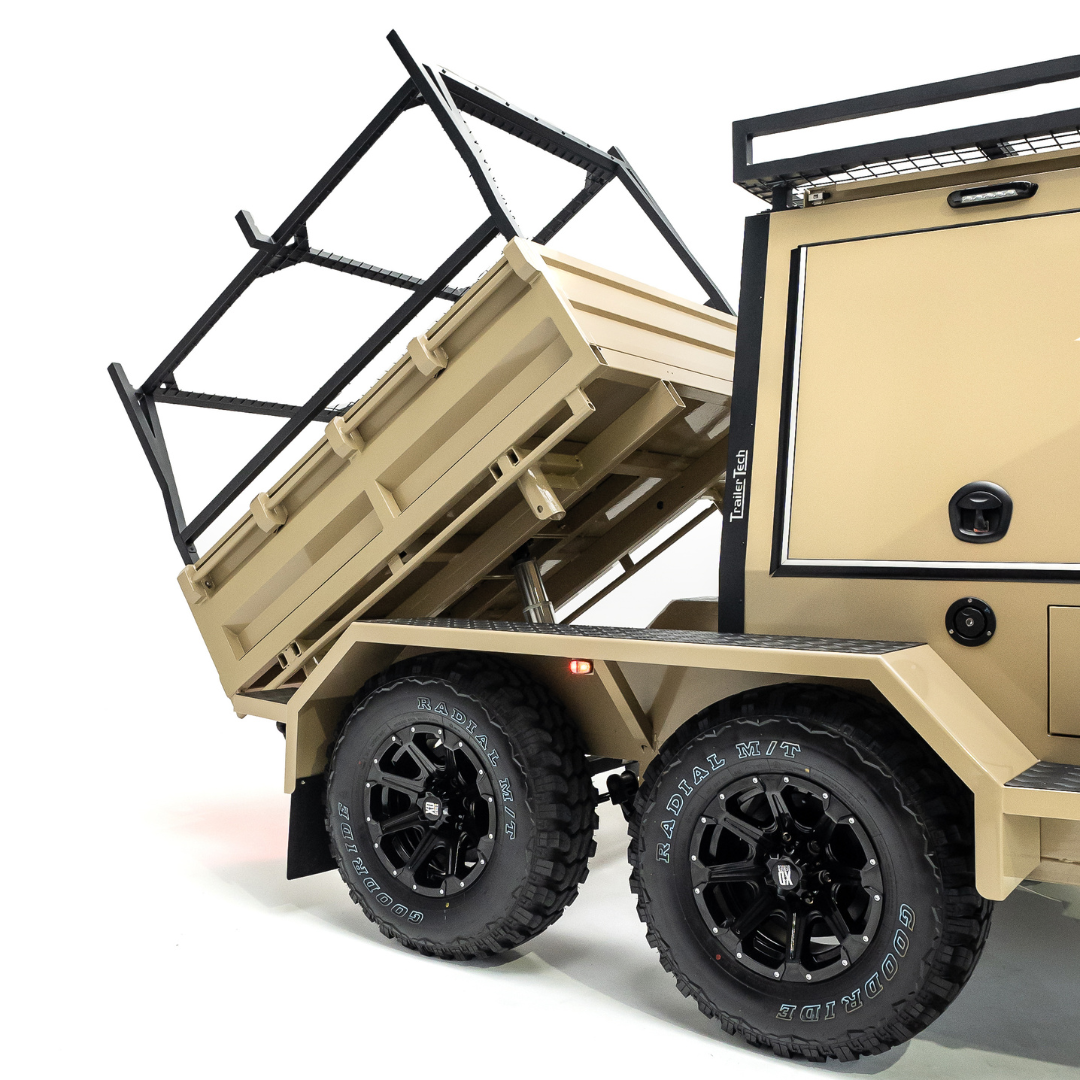

  • Tray back rear tipping function
  • 12V hydraulic pump tipping system
  • 3-Stage heavy duty hydraulic ram
  • Wired & wireless remote included
  • Security: Full central locking system, lock and secure all your tools/equipment with one click. Plus, alarm system fitted so you'll know if your trailer moves or gets messed with!
  • Solar: 2 x 75W mounted on slides
  • Solar Controller: 20A PWM 12V/24V solar controller
  • Batteries: 2 x 100aH AGM Batteries
  • Battery Charger: 30A ACDC Smart 9-stage charger
  • Inverter: 2000-watt Pure Sine Wave smart inverter
  • Switchboard: Internal switchboard control for lighting & water pump
  • Charger: 12v charger with 7-pin Anderson plug
  • Connections: 2 x 10A double GPO's and USB points
  • Lighting: LED lighting inside and outside
    At TrailerTech, we are proud to offer a 1-year parts warranty and a 5-year structural warranty on all our trailers.
    Should you encounter any issues covered under our warranty, our dedicated support team is here to help.
    All trailer purchasers will receive a full comprehensive warranty terms and conditions with their owners' manual and/or when requested.
    If you have any further questions please contact our customer service team at info@trailertechau.com.au.
    Our trailers are delivered Australia-wide direct to you or can be collected from our Gold Coast warehouse.
    We will get delivery pricing quoted via freight company for you.
    Alternatively, we are happy to allow you to arrange your own shipping.

    NOTE
    : Whether we (or you) arrange to ship, upon our delivery to the shipping company, you may choose to arrange insurance to cover transportation. Any risk during transit passes to the purchaser.
    {formbuilder:69335}
    You can also contact us through email, phone, or in person:
    In order for us to effectively help you please make sure to send us a detailed email so we can best assist you.
    Email Address:
    Phone Number:
    (07) 5528 8858
    Business Address:
    TrailerTech - 17 Telford Place, Arundel, QLD 4214
    CabinTech - 170 Brisbane Road, Arundel, QLD 4214
    (Appointment Only)

    WHAT SETS US APART?

    True Quality & Innovation

    Australian designed and engineered, providing tough and durable trailer performance. Experience the leading provider of innovative and durable trailers designed to meet all your recreational and professional needs.

    Functionality & Multi-Use

    Countless hours were spent designing and engineering to create the most versatile and functional trailer package on the market. Ensuring it meets a wide range of needs and useability while maintaining the highest standards.

    13yrs+ Industry Experience

    Bringing 13 years of knowledge and innovation to every trailer. Each trailer is built to ensure superior performance, reliability, and longevity. A trusted leader in the trailer industry, exceeding customer expectations and set new standards.
